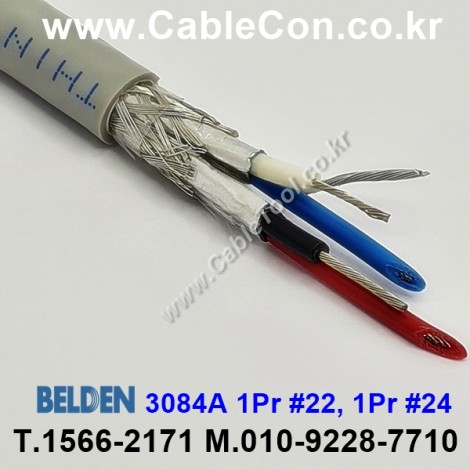

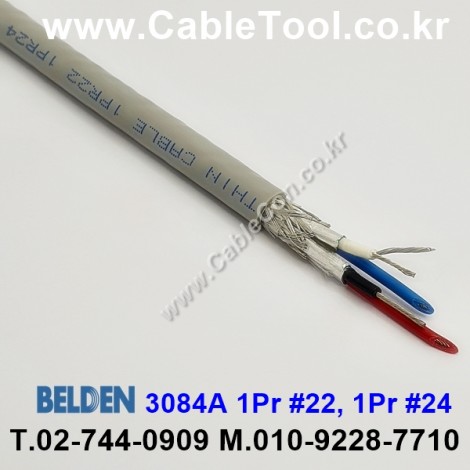

BELDEN 3084A T5U(Gray) 1Pair 22AWG + 1Pair 24AWG 벨덴 30M > DeviceNet Cable

카다로그 바로가기: http://www.Cable.kr

BELDEN 3084A, DeviceNet Thin Type, PVC Jacket, UL AWM 20201, I/II A, CMG, CL2
선재:
Power: 1P x 22(19x34)AWG
Data: 1P x 24(19x36)AWG
콘덕터 재질:
Power: TC - Tinned Copper Conductor
Data: TC - Tinned Copper Conductor
절연체 재질:
Power: PVC - Polyvinyl Chloride Insulation
Data: PE - Polyethylene (Foam) Insulation
색상 코드:
Power: Red & Black
Data: Blue & White

내부쉴드 타입:
Power: 벨드호일(Beldfoil?) 차폐(차폐율: 100%)
Data: 벨드호일(Beldfoil?) 차폐(차폐율: 100%)
외부쉴드 타입: 주석도금 편조 차폐(차폐율: 65%)
드레인와이어: 22(19x34) AWG, TC
외피 재질: PVC - Polyvinyl Chloride Jacket

사용환경:
가혹한 환경에서 사용가능, ODVA 디바이스 버스 통신용

표준 및 준수항목:

Characteristic Impedence(Data): 120 Ohm
UL Voltage Rating: 300 V (CMG)
Operating  Temperature: -20°C to +60°C
Environmental Suitability: Indoor, Sunlight Resistance, Oil Resistance
Flammability / Fire Resistance: UL1685 FT4 Loading, FT4, 1202, IEC 60332-1-2
NEC / UL Compliance: Article 725, Article 800, CL2, CMG
AWM Compliance: 20201, I/II A
CEC / C(UL) Compliance: CMG
CPR Euroclass: Eca
European Directive Compliance:
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s): ODVA Class 2 Thin
Notes:
Flex Life: +/- 90 Degree Flex Test, 2" Diameter, 2 lbs. tension: 2000 Cycles minimum. Meter marks on jacket to aid users in installation.
ODVA DeviceNet is an Open DeviceNet Vendor Association, Inc. trademark..
