BELDEN 8760NH 00(Chrome) 1Pair 18AWG 벨덴 50M > UL/CSA 300V계장용

카다로그 바로가기: http://www.Cable.kr

BELDEN 8760NH, Analog 오디오, 제어, 계장용 케이블, Beldfoil? Shield, LSZH Jacket, CPR B2ca
선재: 1P x 18(16x30)AWG
콘덕터 재질: TC - Tinned Copper Conductor
절연체 재질: PE ? Polyethylene Insulation
색상 코드: Black & Clear

쉴드 타입:
Tape) 전체 벨드호일(Beldfoil?) 차폐(차폐율: 100%)
드레인와이어: 20 AWG (7x28), TC
외피 재질: LSZH - Low Smoke Zero Halogen (Flame Retardant) Jacket

사용환경:
아날로그 오디오, 라인레벨 오디오 케이블, 4-20mA, Digital Control(24v) 케이블 등

표준 및 준수항목:
Voltage Rating: 300 V
Operating  Temperature (Fixed Install): -45°C to +80°C
Oil Resistance: IEC 60811-404
CPR Euroclass: B2ca-s1,d1,a1
CENELEC Compliance: EN 50290-2-27
Environmental Space: Indoor - Euroclass B2ca
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01
Suitability - Indoor: Yes
Suitability - Non-Halogenated: Yes
Suitability - Sunlight Resistance: Yes
IEC Flammability: IEC 60332-3-24
IEC 60754-1 (EN50267-1)- Halogen Amount: Zero
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Max. Conductivity: 2.5 μS/mm
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Min. pH: 4.3
IEC 61034-2 (EN 61034-2) (VDE 0482-1034) - Smoke Density Min.Transmittance: IEC 61034-2

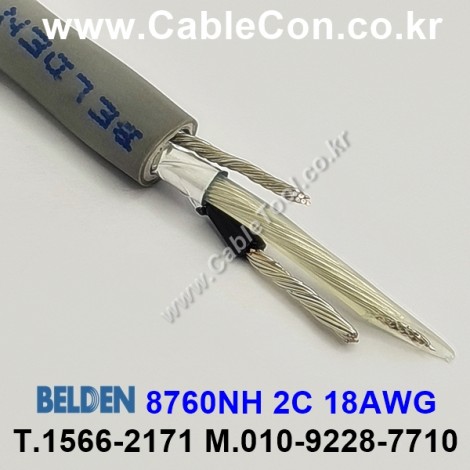

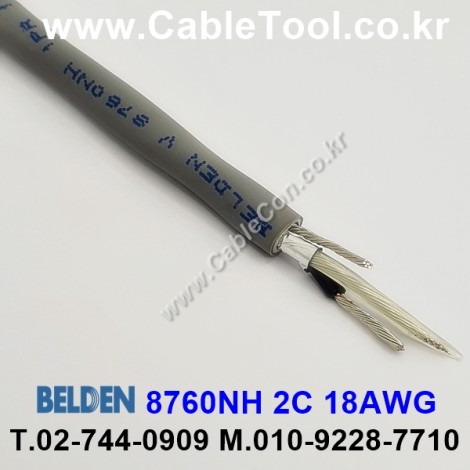

www.cablecon.co.kr  벨덴8760NH 사진 www.cable.kr  Belden 카다로그
BELDEN, BELDEN8760NH, 벨덴8760NH, BELDEN 8760NH, 벨덴 8760NH, 8760NH, 벨덴
